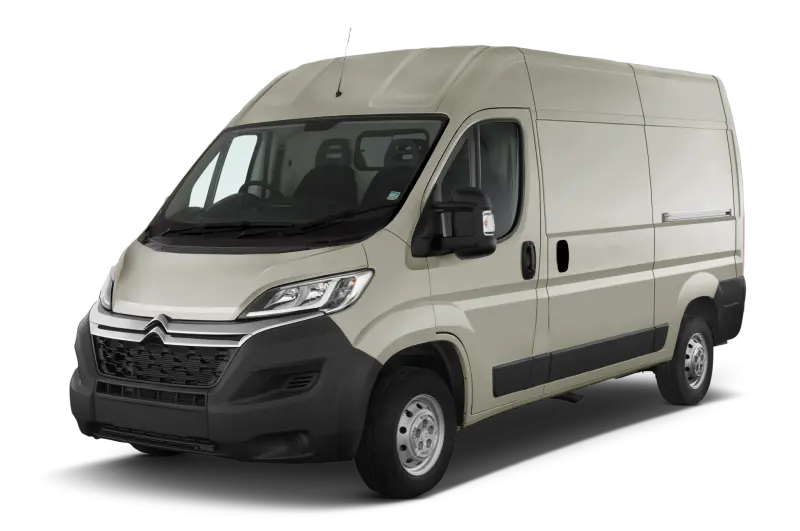

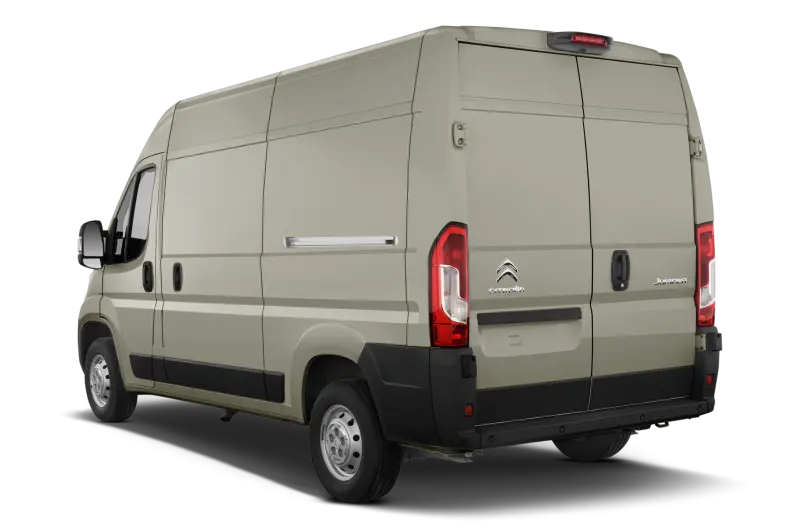

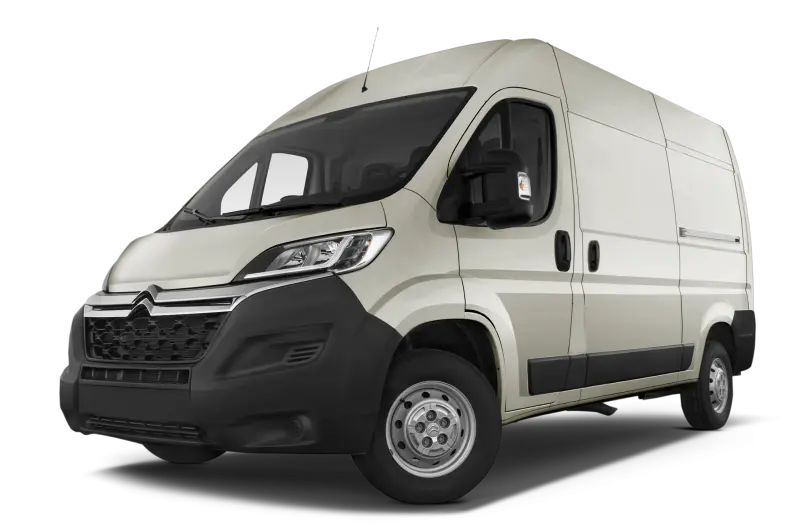

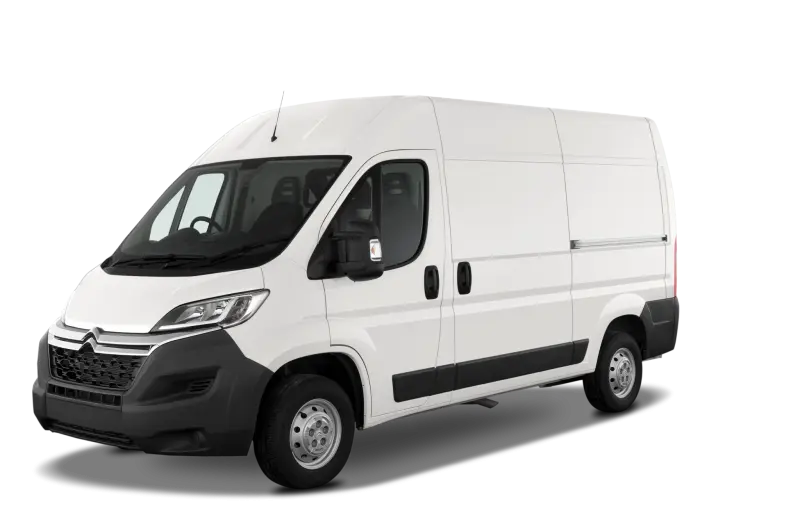

Citroen Relay Large Van 35 L3 2.2 BlueHDi H2 Van 140ps Enterprise Edition

Brakes

ABS:

Hill start assist:

Electronic brake force distribution (EBFD):

Emergency brake assist:

Electronic Stability Control (ESC):

Safety

Driver's airbag:

Body Glass

Electric front windows:

Tinted windows:

Laminated windscreen:

Non automatic 2 speed intermittent front windscreen wipers:

Interior Lights

Load compartment interior light:

Two load area lights:

Driver Convenience

Rear parking distance sensor:

Locking fuel cap:

Interior Features

Passenger grab handle:

Reach adjustable steering column:

Non slip hardwearing front cabin floor covering:

Magnet cloth upholstery:

Central dash folding clipboard:

Non illuminated lockable glove box:

Two cup holders and mobile phone storage in centre of lower dashboard:

Lower central glovebox with dashboard tablet holder:

Bulb out warning for side light,headlamp and indicators:

Driver Information

Low fuel warning light:

Handbrake on warning light:

Seatbelt warning indicator:

Gearshift indicator:

Battery charge warning:

Oil level indicator:

Telematics box for Free2Move Connect Fleet services:

Rev counter, trip computer, water temperature and fuel guage:

Door open warning for cab doors:

Exterior Body Features

Side rubbing strips:

Load Area

10 tie-down hooks:

Security

Visible Vehicle Identification Number (VIN):

Lights on alarm:

High frequency remote control central locking with 3 button plip:

Thatcham rolling transponder immobiliser:

Locking for cab:

Perimetric alarm and deadlocks:

Exterior Lights

Halogen headlights with clear polycarbonate lenses:

Remote headlight adjustment from facia:

Doors

Nearside sliding side loading door:

Driving Mirrors

Twin lens door mirrors with electrically adjustable and heated upper mirror:

Heating/Cooling/Ventilation

Manual air conditioning for cab area with glovebox:

Wheels

Steel wheel centre cap:

Driver Aids

Power steering (non variable):

Cruise control with variable speed limiter:

Entertainment

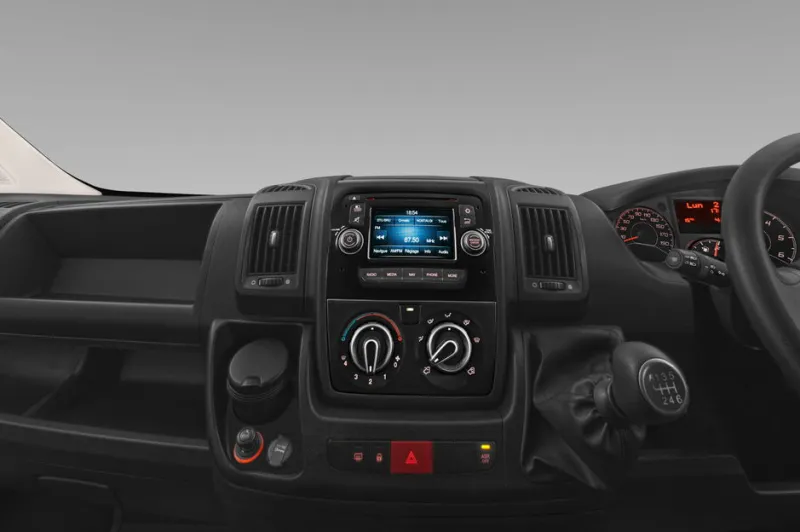

7" Colour touchscreen with DAB radio, integrated satellite navigation, Bluetooth handsfree, USB socket and steering wheel mounted controls:

Mirrorscreen with Apple CarPlay and Android Auto:

Seats

Drivers seat with height, rake, lumbar and reach adjustment, and drivers armrest, with storage compartment under seat:

General

Insurance Group 1: N

Insurance Group 2: N

Chassis Engine Number: N

Vin/Frame No.: N

Coin Series: N

Coin Description: N

Standard manufacturers warranty - Years: 2

Standard manufacturers warranty - Mileage: 999999

Manufacturers Paintwork Guarantee - Years: 1

Man Corrosion Perforation Guarantee - Years: 6

Exhaust System: CATALYTIC CONVERTER

Front Brakes: VENTILATED DISCS

Rear Brakes: DISCS

Hand Brake: REAR DRUMS

Battery Volts: 12

Front Suspension: MACPHERSON STRUTS

Rear Suspension: LEAF SPRINGS

Steering: PAS RACK AND PINION

Clutch: SINGLE DRY PLATE

Any aspect of the vehicles safety cause concern?:

Coin Wheelbase Description Code: N

Coin Wheelbase Name Code: N

Coin Gross Vehicle Weight Code: N

Coin Power Output Code: N

Special Edition:

Special Order:

Based On ID: 0

Running Cost League Headings: LARGE

Ghost model for valuation purposes:

Service Interval Mileage: 32000

Service Interval Frequency - Months: 24

NCAP Adult Occupant Protection %: 0

NCAP Child Occupant Protection %: 0

NCAP Overall Rating - Effective February 09: 0

NCAP Pedestrian Protection %: 0

NCAP Safety Assist %: 20

Badge Engine CC: 2.2

Badge Power: 140

Vehicle Homologation Class: N1

Alternative Fuel Qualifying:

Generation Mark: 2

NCAP Overall Rating - LCV: Bronze

Relative Height: H2

Relative Length: L3

Weight and Capacities

Minimum Kerbweight: 2005

Gross Vehicle Weight: 3500

Fuel Tank Capacity (Litres): 90

Max. Towing Weight - Braked: 2500

Max. Towing Weight - Unbraked: 750

Payload: 1495

Load Space Volume: 13

Boot Capacity Saloons:

Luggage Capacity - 2nd Row Seats Up:

Luggage Capacity (Seats Down):

Luggage Capacity - 3rd Row Seats Up:

Luggage Capacity - 3rd Row Seats Down:

Luggage Capacity - 2nd Row Seats Removed:

Luggage Capacity - 3rd Row Seats Removed:

No. of Seats: 3

Max. Roof Load: 100

Luggage Capacity (Seats Up): 0

Plated Front Axle: 1870

Plated 2nd Axle: 2000

Gross Train Weight: 6000

Vehicle Dimensions

Length: 5998

Width (excluding mirrors): 2050

Wheelbase: 4035

Width (including mirrors): 2508

Height: 2522

Height (including roof rails): 0

Load Length: 3705

Load Width: 1870

Load Height: 1932

Turning Circle - Kerb to Kerb: 14.24

Front Overhang: 948

Rear Overhang: 1015

Side Load Door Width: 1250

Side Load Door Height: 1755

Lower Rear Door Width: 1562

Upper Rear Door Width: 1562

Rear Door Height: 1790

Load Space Width Between Wheel Arches: 1422

Turning Circle - Wall to Wall: 14.46

Fuel Consumption - ICE

EC:

WLTP - FC (l/100km) - Comb - TEH: 11

WLTP - FC (l/100km) - Comb - TEL: 7

WLTP - FC (l/100km) - Extra High - TEH: 12.8

WLTP - FC (l/100km) - Extra High - TEL: 7

WLTP - FC (l/100km) - High - TEH: 10

WLTP - FC (l/100km) - High - TEL: 6.9

WLTP - FC (l/100km) - Low - TEH: 10.5

WLTP - FC (l/100km) - Low - TEL: 7.7

WLTP - FC (l/100km) - Medium - TEH: 9.9

WLTP - FC (l/100km) - Medium - TEL: 6.8

WLTP - MPG - Comb - TEH: 25.6

WLTP - MPG - Comb - TEL: 40.1

WLTP - MPG - Extra High - TEH: 22

WLTP - MPG - Extra High - TEL: 40.3

WLTP - MPG - High - TEH: 28.3

WLTP - MPG - High - TEL: 40.9

WLTP - MPG - Low - TEH: 26.9

WLTP - MPG - Low - TEL: 36.5

WLTP - MPG - Medium - TEH: 28.5

WLTP - MPG - Medium - TEL: 41.4

Performance

0 to 62:

Top Speed: 99

BHP: 140

PS: 1

0 to 60:

Engine Power KW: 103

Engine Power RPM: 3750

Engine Torque LBS.FT: 251

Engine Torque NM: 340

Engine Torque RPM: 1750

Engine Torque MKG: 34.7

Engine and Drive Train

Bore: 85

Stroke: 96

CC: 2179

Cylinders: 4

Cylinder Layout: IN-LINE

Number of Valves: 16

Valve gear: DOHC

Fuel Type: DIESEL

Catalytic Convertor: 1

Engine Layout: FRONT TRANSVERSE

Compression Ratio: 16.1:1

Gears: 6 SPEED

Engine Make: N

Fuel Delivery: COMMON RAIL

Cooling System: WATER

Automatic Transmission:

Manual Transmission: 1

Engine Codes: DW12RUD

Tyres

Tyre Size Front: 215/70 R15

Tyre Size Rear: 215/70 R15

Tyre Size Spare: TYRE REPAIR KIT

Wheel Type: 15" STEEL

Wheel Style: N

Tyre Make: N

Plated 3rd Axle: 0

Plated 4th Axle: 0

Alloys?:

Space Saver?:

Automatic Clutch:

Emissions - ICE

Standard Euro Emissions: EURO 6

Noise Level dB(A): 70

CO: 0.014

NOx: 0.035

HC+NOx: 0.039

Particles: 0.001

HC:

WLTP - CO2 (g/km) - Comb: 241

WLTP - CO2 (g/km) - Comb - TEH: 289

WLTP - CO2 (g/km) - Comb - TEL: 241

WLTP - CO2 (g/km) - Extra High - TEH: 336

WLTP - CO2 (g/km) - Extra High - TEL: 184

WLTP - CO2 (g/km) - High - TEH: 262

WLTP - CO2 (g/km) - High - TEL: 181

WLTP - CO2 (g/km) - Low - TEH: 275

WLTP - CO2 (g/km) - Low - TEL: 203

WLTP - CO2 (g/km) - Medium - TEH: 260

WLTP - CO2 (g/km) - Medium - TEL: 179

Test Cycles

Emissions Test Cycle: WLTP

RDE Certification Level: RDE 2
